Steel Rollers Built to Last

Available in a range of different sizes.

We offer steel rollers in a range of different sizes for applications requiring extreme durability and strength. The steel rollers we supply have a standard bolt size of 16mm with other sizes available upon request.

Get in touch

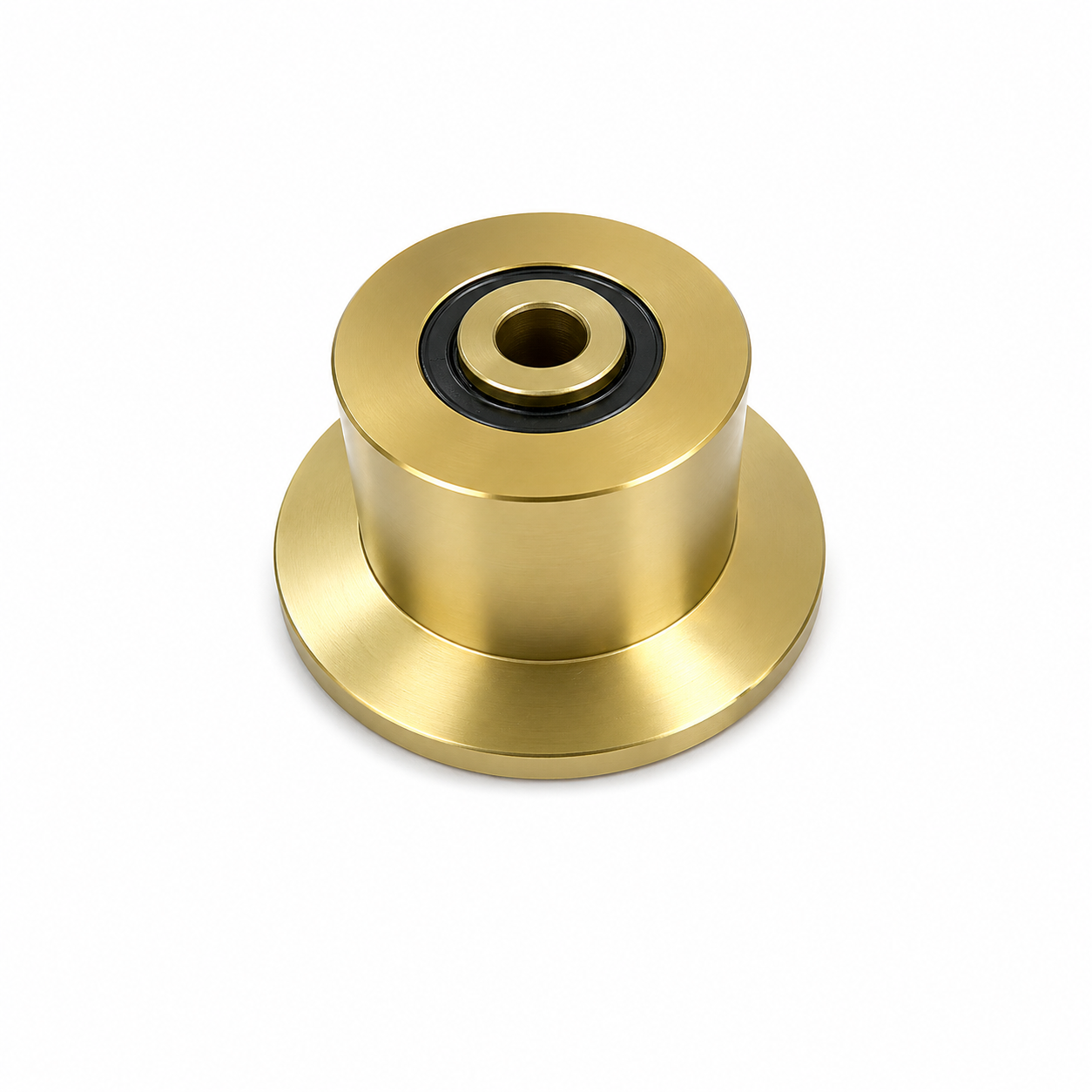

Steel Flanged Roller

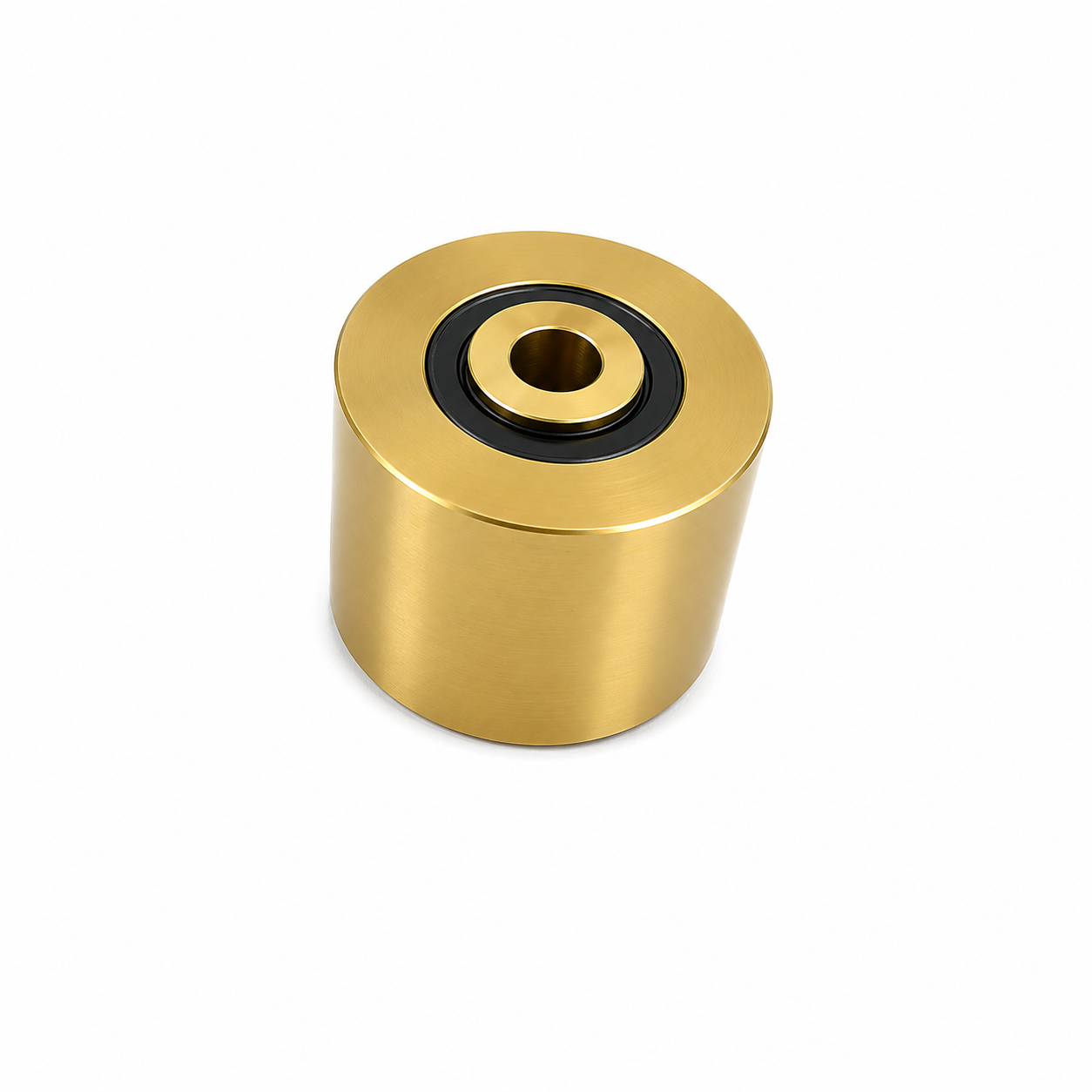

Steel Plain Roller

We offer steel rollers in a range of different sizes for applications requiring extreme durability and strength. The steel rollers we supply have a standard bolt size of 16mm with other sizes available upon request.



          Roller
          A
          B
          C


      RE.60.CU.1660mm60mmn/a
RE.60.CF.1660mm50mm100mm
RE.80.CU.1680mm60mmn/a
RE.80.CF.1680mm50mm120mm
RE.90.CU.1690mm60mmn/a
RE.90.CF.1690mm50mm130mm
RE.11.CU.16110mm60mmn/a
RE.11.CF.16110mm50mm145mm

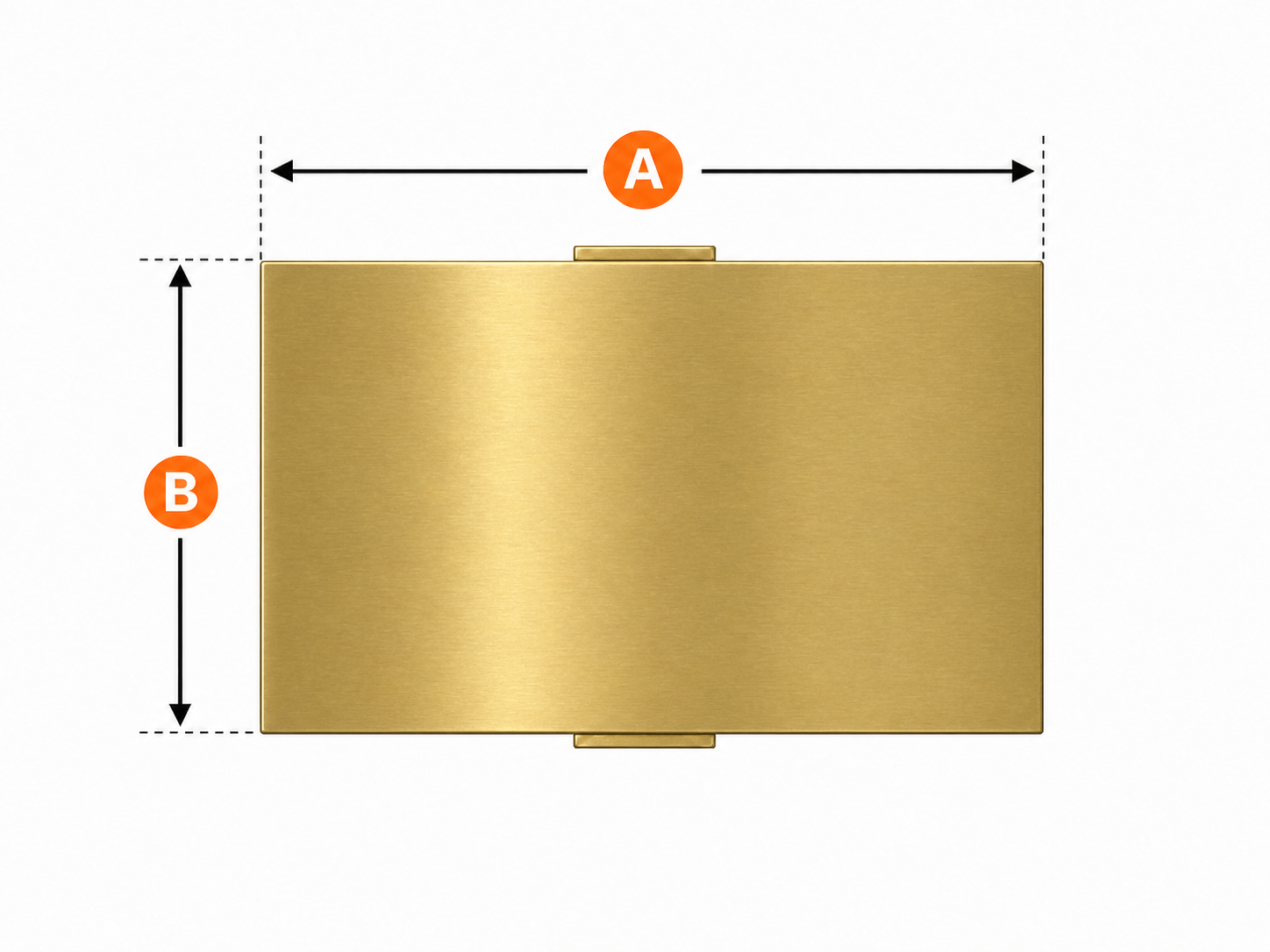

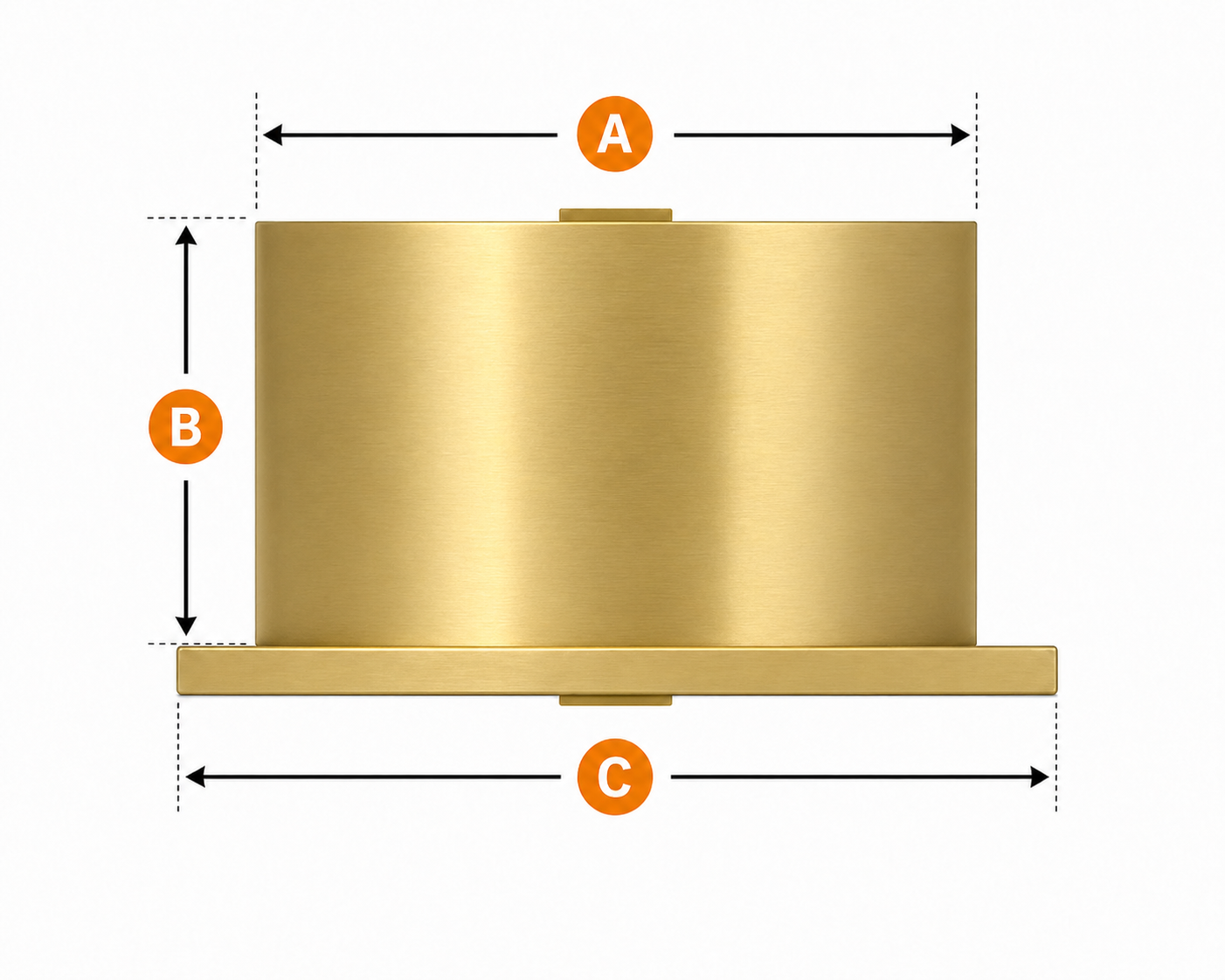

Roller	A	B	C
RE.60.CU.16	60mm	60mm	n/a
RE.60.CF.16	60mm	50mm	100mm
RE.80.CU.16	80mm	60mm	n/a
RE.80.CF.16	80mm	50mm	120mm
RE.90.CU.16	90mm	60mm	n/a
RE.90.CF.16	90mm	50mm	130mm
RE.11.CU.16	110mm	60mm	n/a
RE.11.CF.16	110mm	50mm	145mm
