S-Type Joint

Benefits of S-Type Joints

S-type joints were designed by our own experienced engineers and are a great choice for sprocket driven webs.

The S-Type, with its specially designed male/female bushes, allows every bar, including the joint pin, to engage with the sprocket.

A bolt-on style hinge sits atop the joint bar, making them easy to swap out. Hinges can be fitted whilst the web is still on the machine.

The way the S-Type hinge is fixed to the belt creates unparalleled pull strength.

What you get:

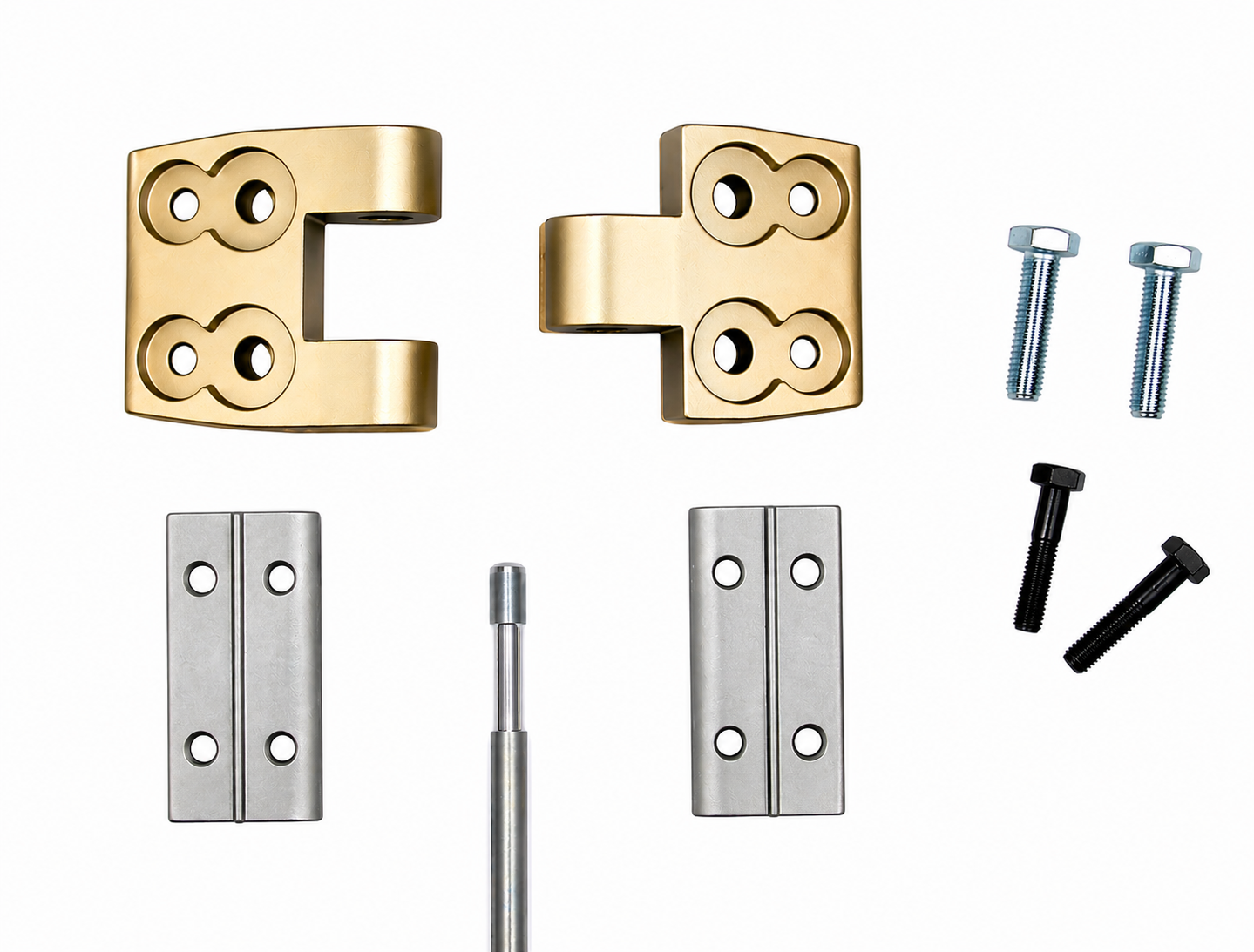

When purchasing our complete joiners, these come complete with:

• 2 web bars

• A joint pin

• Hinges

• Bolts

• Back plates

For “on the go” repairs, we can offer the hinges loose or any part of the joiner. Ask us for more details.
