K-Type Joints

Benefits of K-Type Joints

Our K-Type joiners were again designed by our own experienced engineers and are a great choice for Harvester webs.

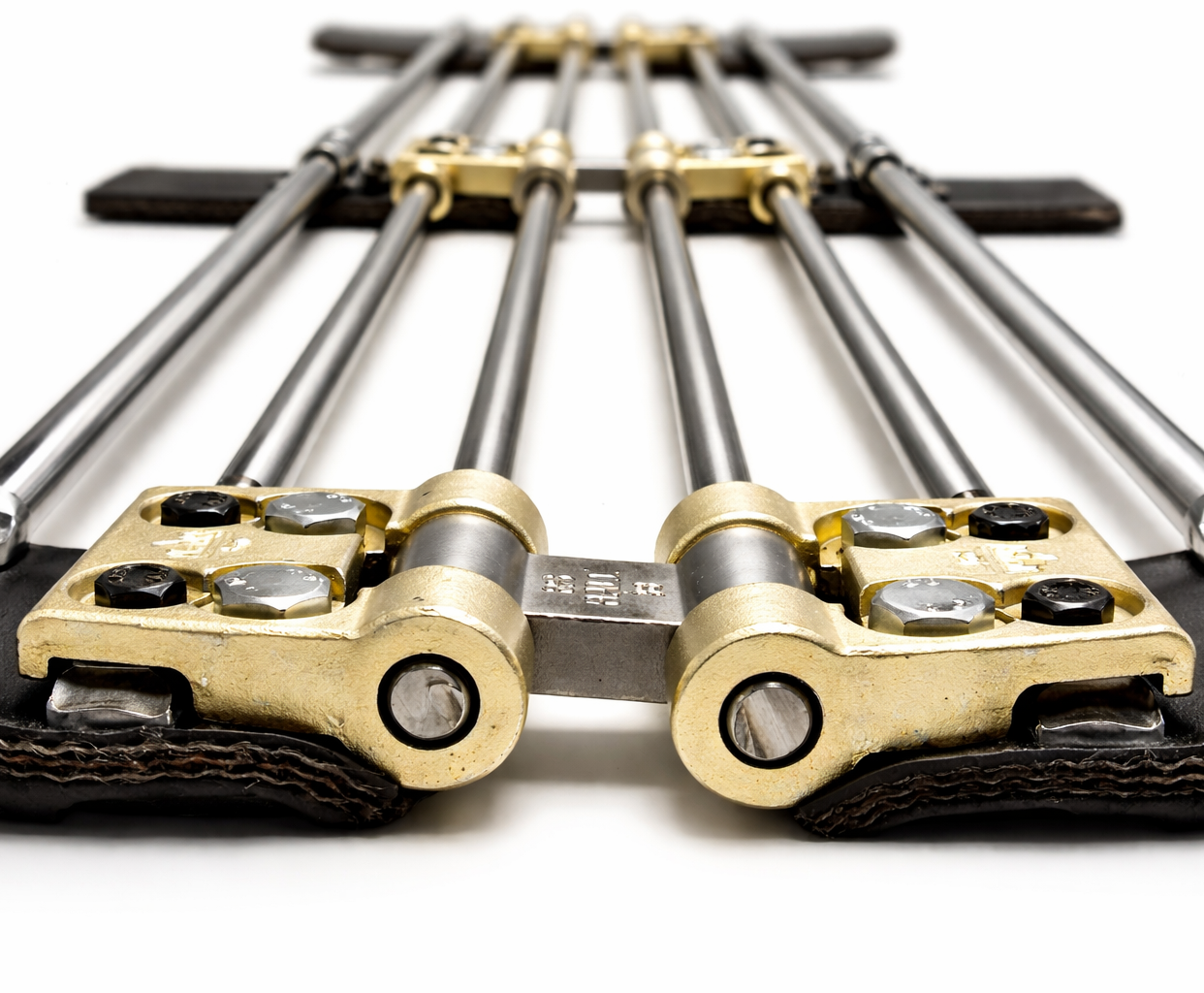

The K-Type joiner is specially designed to be flexible, allowing it to engage with rubber drives that have pinch rollers. The swinger (Dogbone) link allows the hinge to fold back on itself without overly protruding.

A bolt-on style hinge sits atop the joint bar, making them easy to swap out. Hinges can also be fitted whilst the web is still on the machine.

The way the K-Type hinge is fixed to the belt creates unparalleled pull strength.

Available in pitches of 28mm, 32mm, 36mm, 40mm, 42mm, 45mm and 50mm. These hinges are designed to suit 32mm hole centres on either 60mm or 75mm wide belt.

28mm and 32mm variants have 2 bolts, whilst the remaining sizes feature 4 bolts.

What you get:

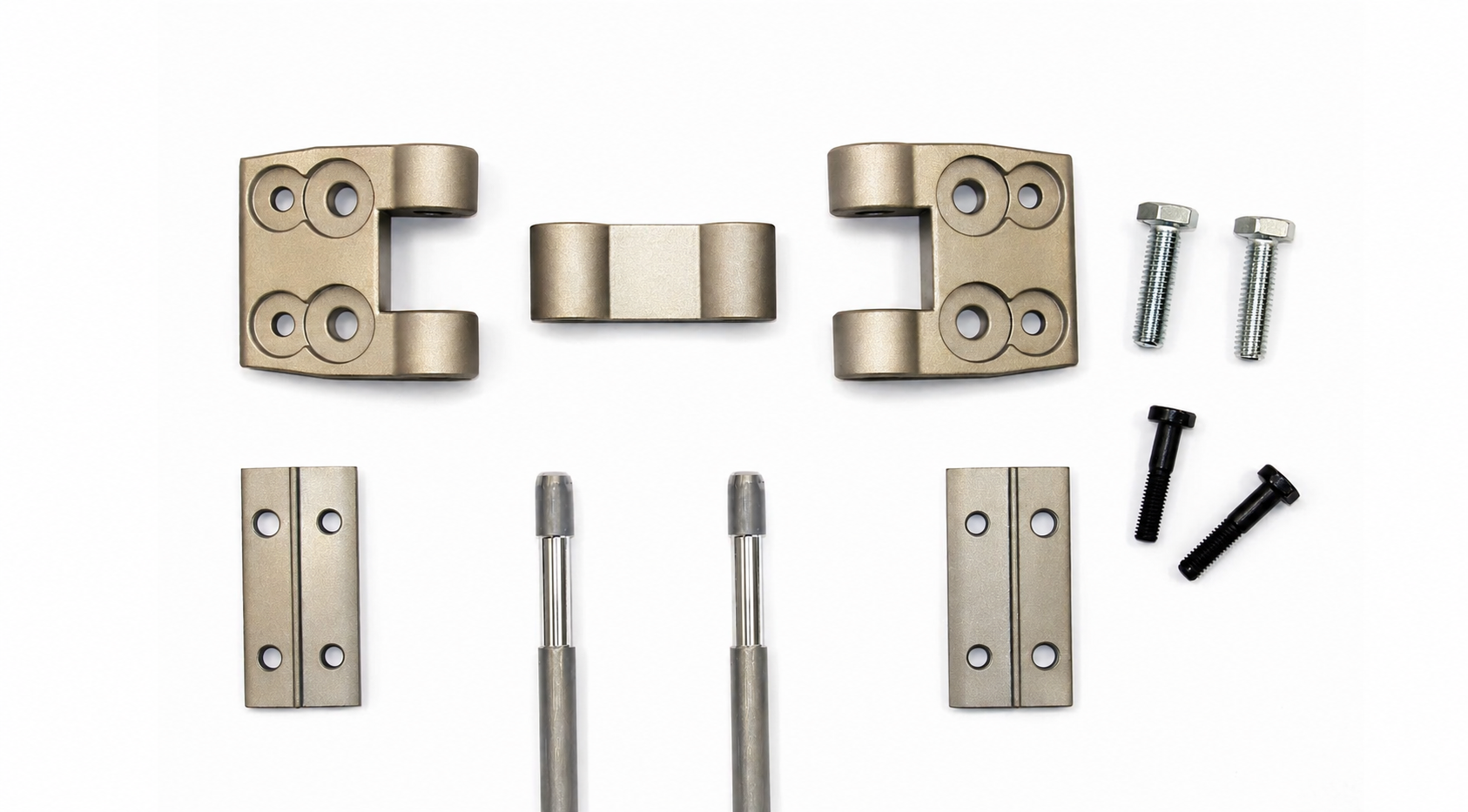

When purchasing our complete joiners, they come supplied with:

• 2 web bars

• 2 joint pins

• Hinges

• Swinger (Dogbone)

• Bolts

• Back plates

For “on the go” repairs, we can also supply hinges separately or any individual part of the joiner. Please contact us for more details.
