Finger Drives

To drive the underside of the belting.

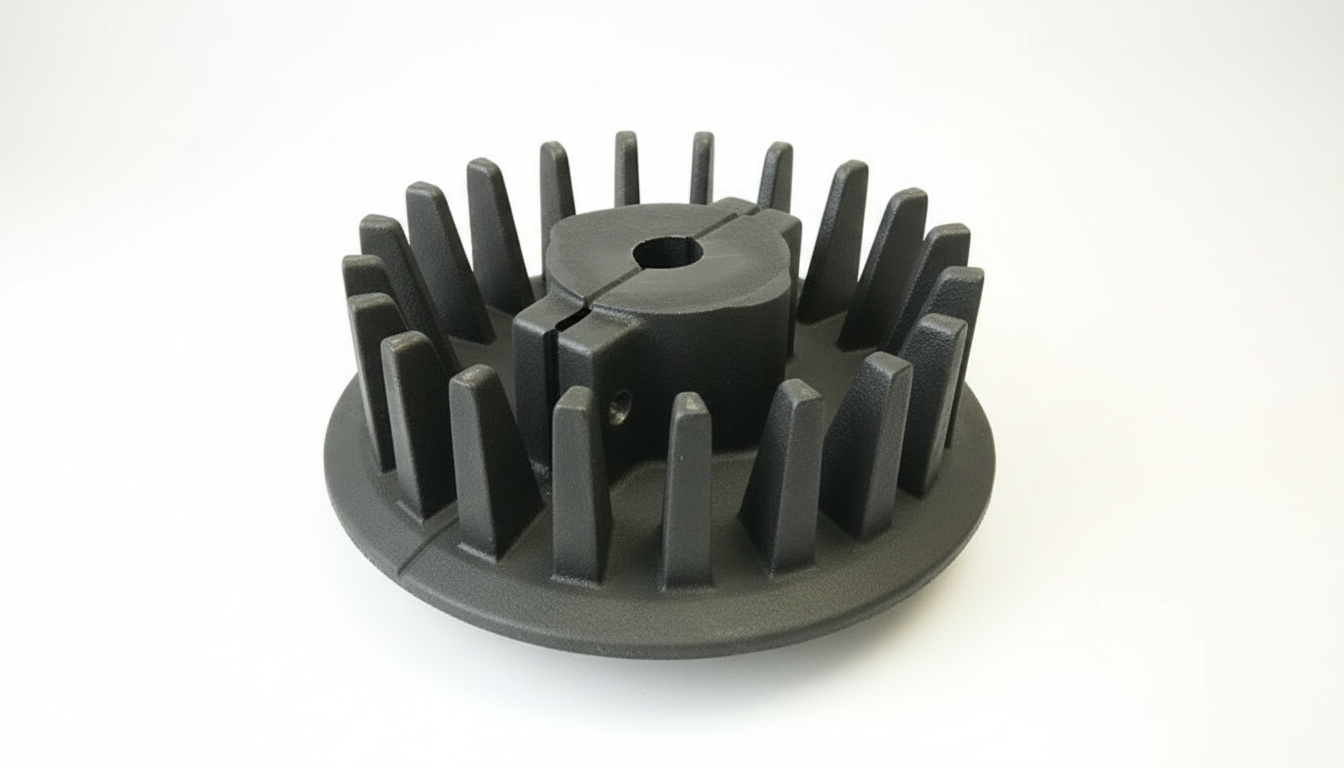

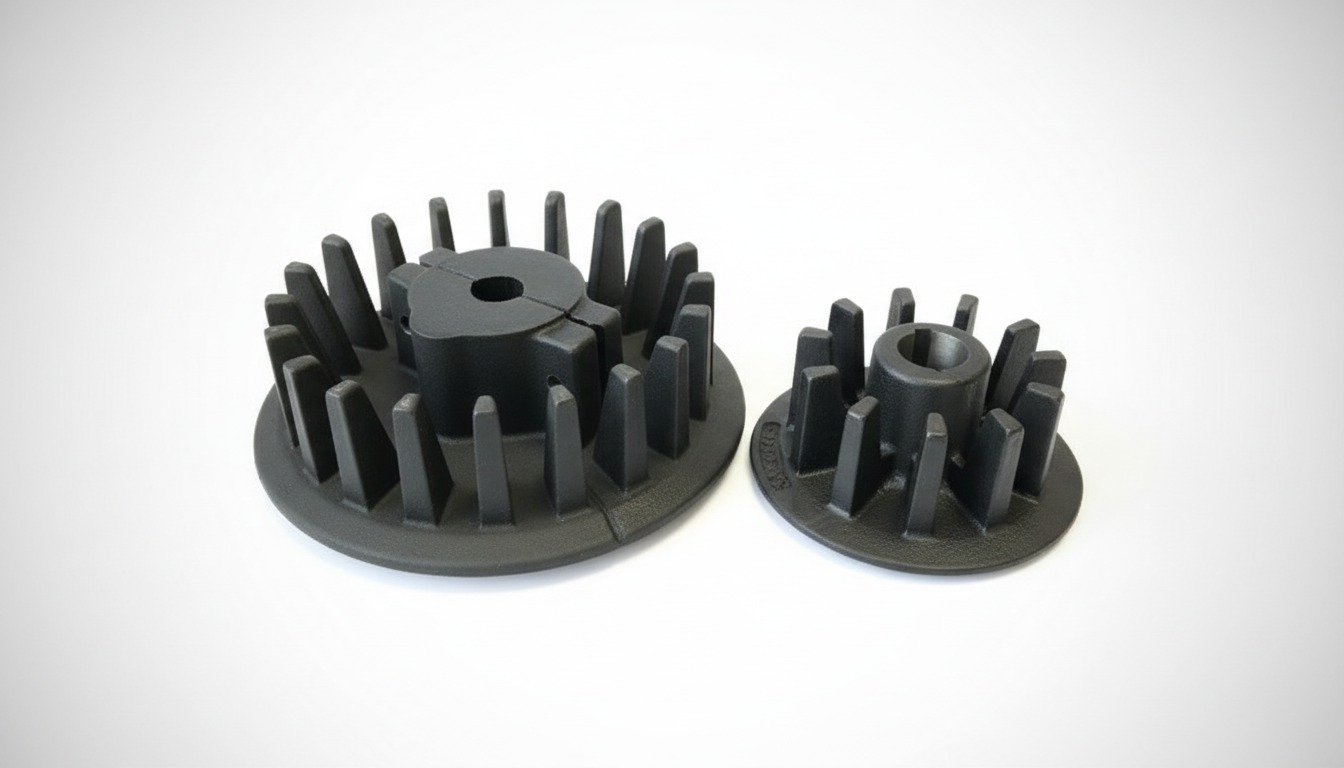

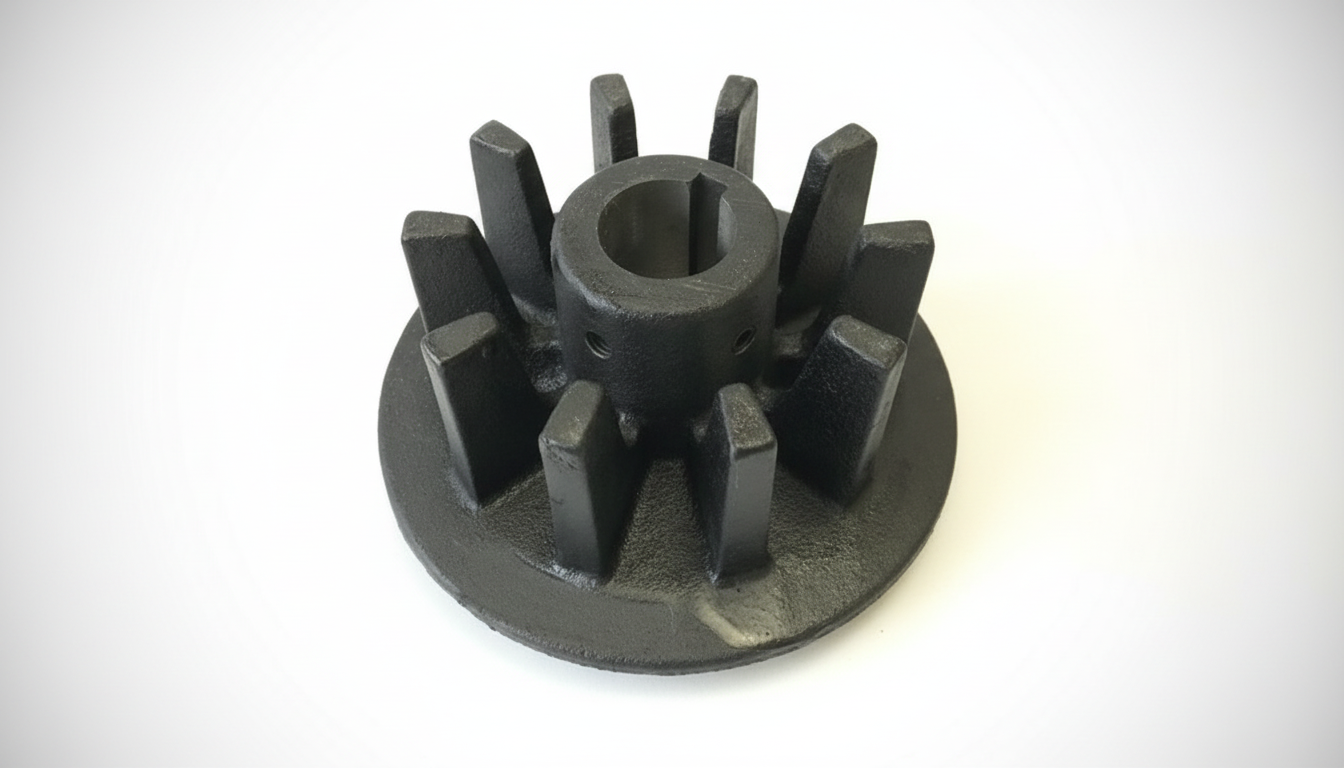

We can provide you with finger drives in a wide range of different sizes depending on your requirements. Finger drives are designed to drive the underside of belting, and they tend to last much longer than traditional sprockets, provided they are not subjected to excessive weight. Our knowledgeable team can assist you in determining the correct size of finger drives for your specific requirements if you desire.

Get in touch



          Sprocket
          Diameter
          Flange
          Min Bore
          Max Bore


      36/6N120mm180mm30mm40mm
35/17N176mm213mm30mm50mm
35/20N212mm247mm35mm50mm
40/12N140mm180mm25mm40mm
80/6N140mm186mm30mm35mm
40/14N166mm202mm30mm40mm
40/18N217mm256mm25mm50mm
80/10N243mm278mm40mm45mm
44/11N140mm181mm30mm40mm
50/12N177mm221mm30mm45mm
50/13N192mm232mm30mm50mm
50/14N205mm242mm30mm45mm
56/12N202mm230mm30mm50mm





Sprocket	Diameter	Flange	Min Bore	Max Bore
36/6N	120mm	180mm	30mm	40mm
35/17N	176mm	213mm	30mm	50mm
35/20N	212mm	247mm	35mm	50mm
40/12N	140mm	180mm	25mm	40mm
80/6N	140mm	186mm	30mm	35mm
40/14N	166mm	202mm	30mm	40mm
40/18N	217mm	256mm	25mm	50mm
80/10N	243mm	278mm	40mm	45mm
44/11N	140mm	181mm	30mm	40mm
50/12N	177mm	221mm	30mm	45mm
50/13N	192mm	232mm	30mm	50mm
50/14N	205mm	242mm	30mm	45mm
56/12N	202mm	230mm	30mm	50mm
