56mm+ K-Type
Flexible joiner with an extended 56mm pitch.
Benefits of 56mm K-Type Joints
Our 56mm+ K-Type joiners were again designed by our own experienced engineers and are a great choice for large overpitched webs.

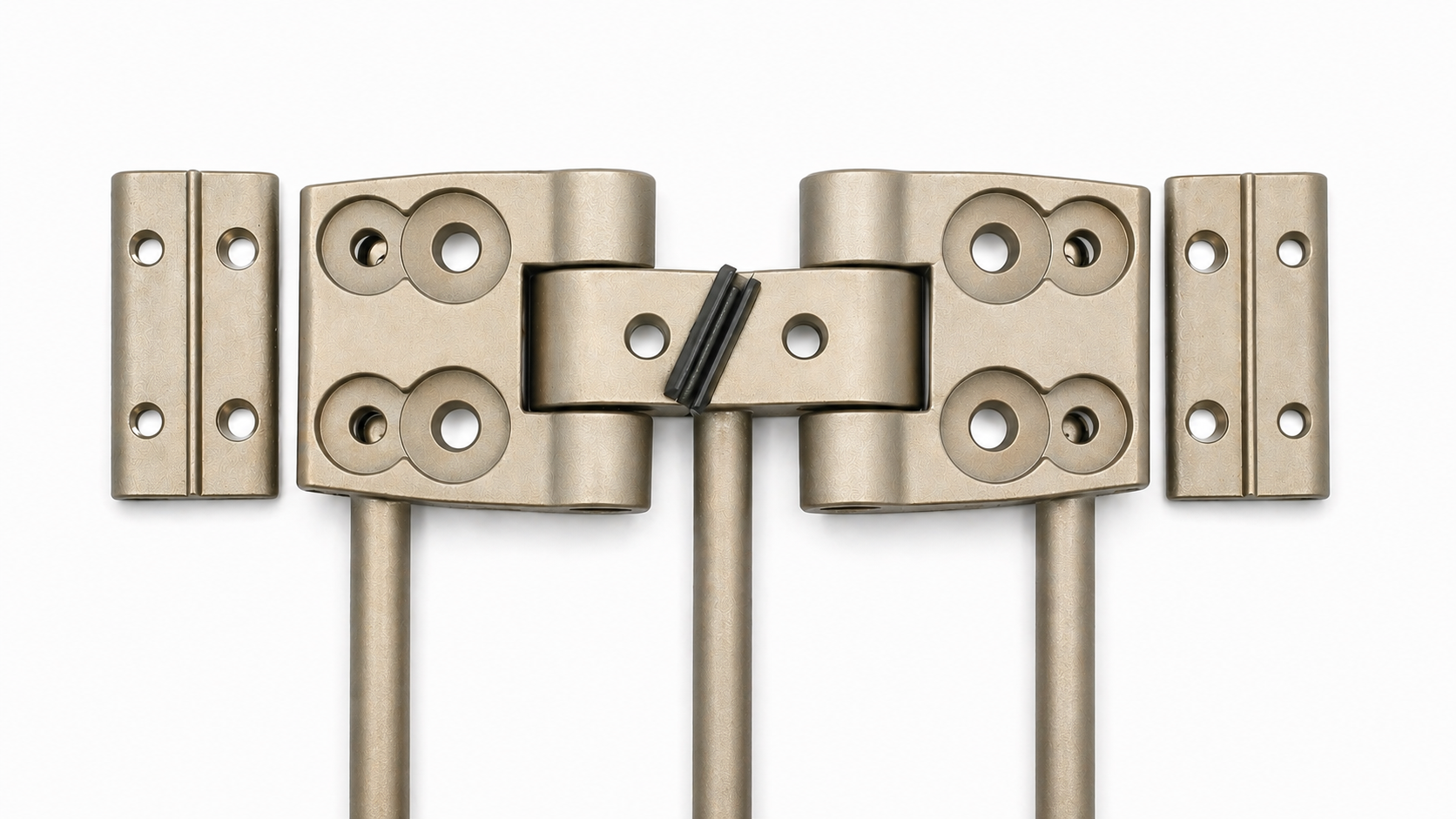

The 56mm+ K-Type joiner has a specially designed “Dogbone” link, allowing a standard K-Type hinge to become a larger pitch and be sprocket driven.
For example, a 40mm hinge coupled with the special “Dogbone” gives us a 56mm drivable pitch that has great pull strength and flexibility.
Pitch combinations are limited.
A bolt-on style hinge sits atop the joint bar, making them easy to swap out. Hinges can be fitted whilst the web is still on the machine.
The way the K-Type hinge is fixed to the belt creates unparalleled pull strength.
What you get:
When purchasing our complete joiners, these come complete with:
2 web bars
1 long joint pin
2 short pins/belt
Split pins
Hinges
Bolts
Back plates
For “on the go” repairs, we can offer the hinges loose or any part of the joiner. Ask us for more details.
